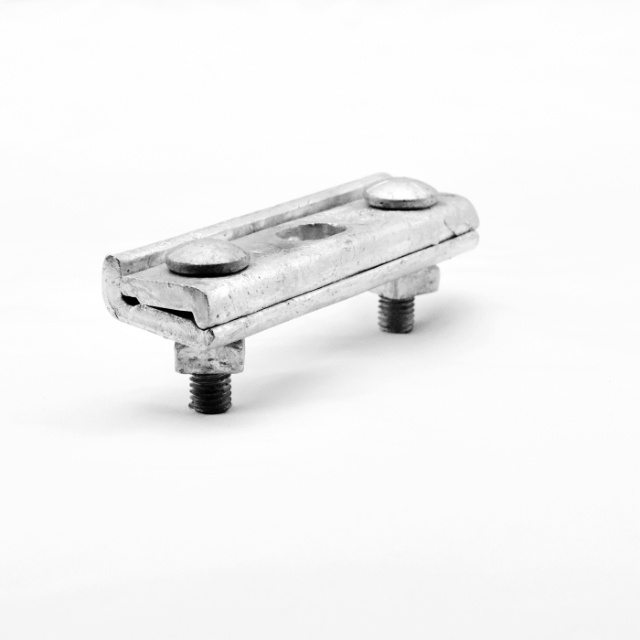

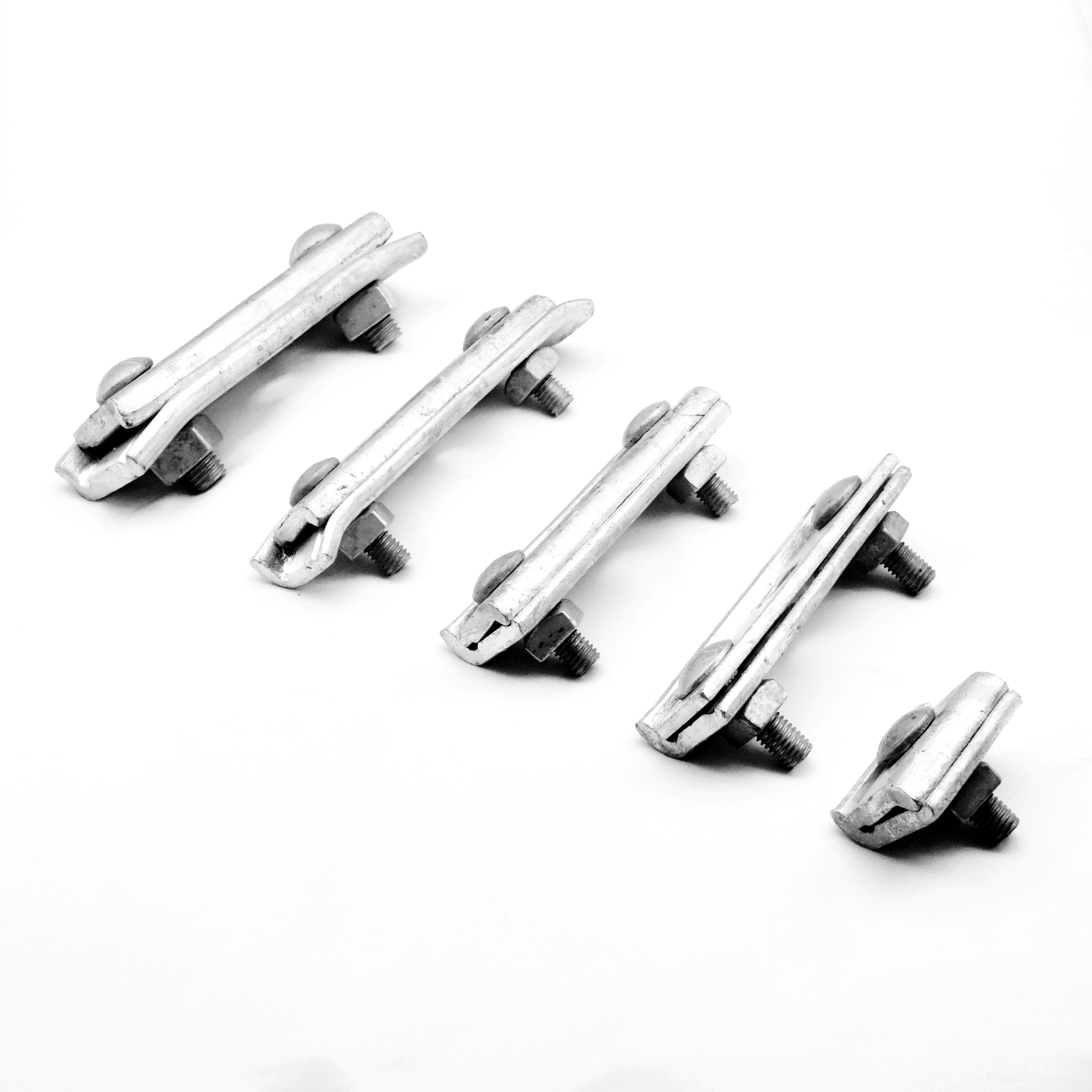

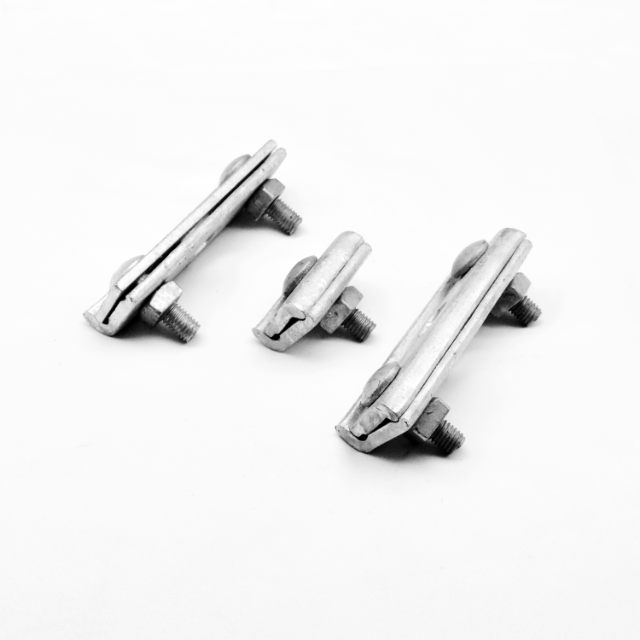

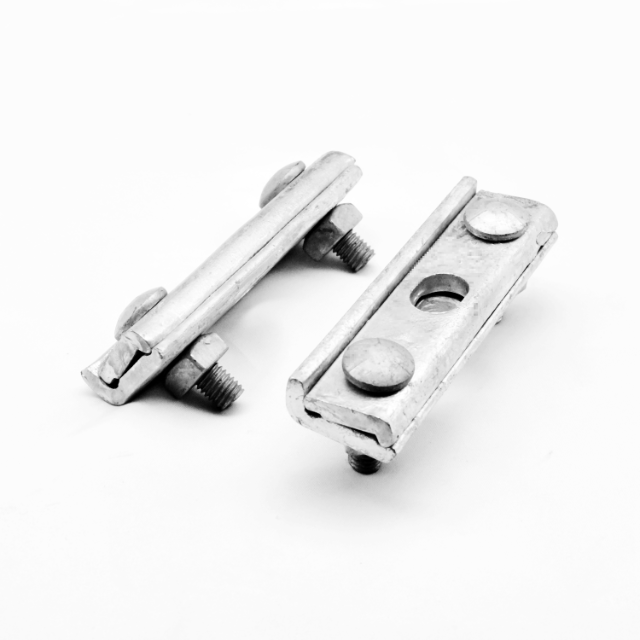

Three Bolt Straight Suspension Clamp

CABLE SUSPENSION CLAMP FOR 5/8" THRU BOLTS

  • SCS-03

  • WD

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • Used to attach strand to straight line poles.

  • Accepts 1/4" (6.6M) to 7/16" (16M) strand.

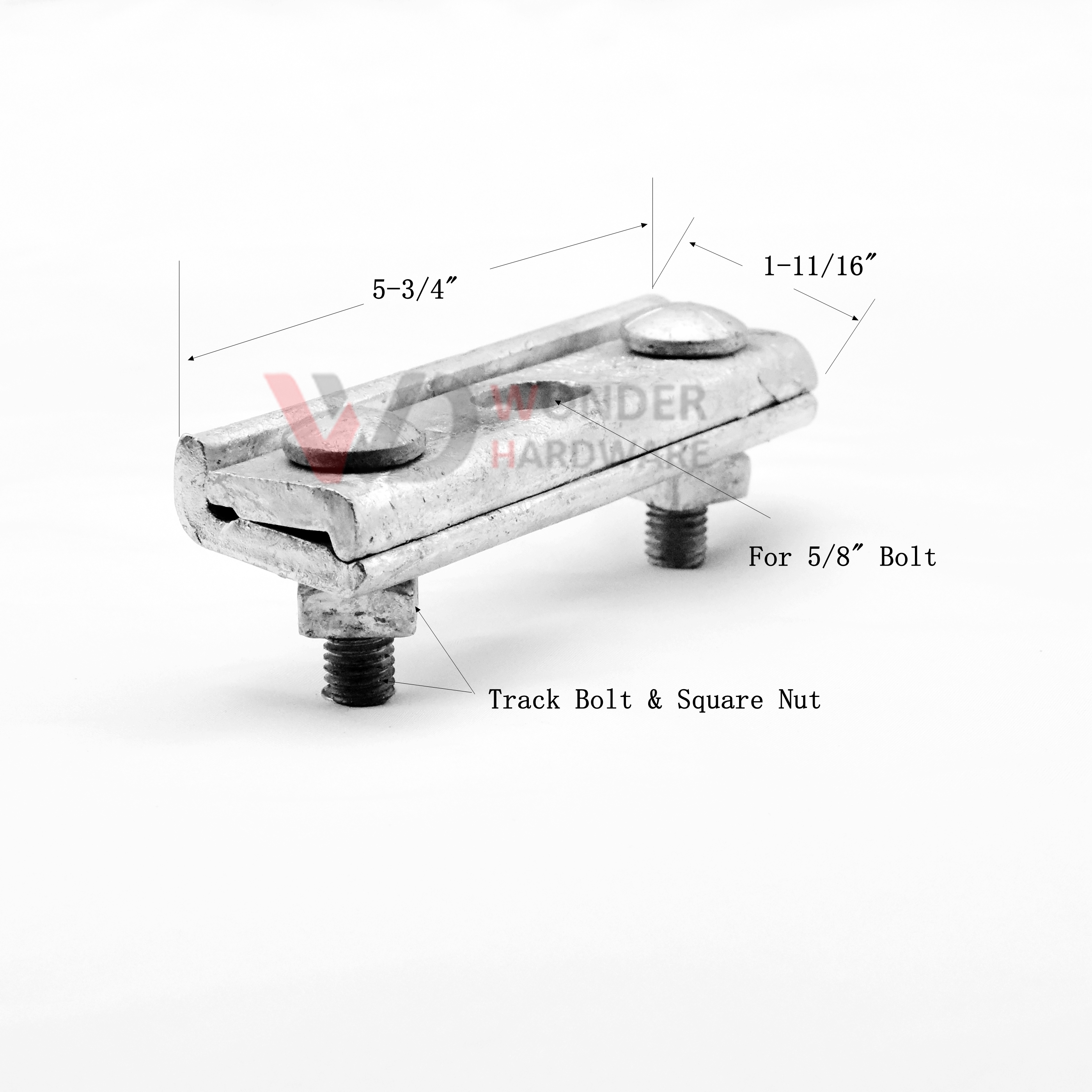

  • Consists of two plates, and two 1/2"-13 track bolts with attached square nuts.

  • Plates are 1-11/16" wide and 5-3/4" long.

  • Center hole accepts 5/8" Thru Bolts

  • Hot dip galvanized to meet ASTM A153


DSC_0729_副本



Previous:
Next:
Straight Clamp suspension clamp straight suspension clamp pole line hardware power line fittings power line hardware
