Used for attaching strand to corner poles.
Accepts 1/4" (6.6m) to 7/16" (16m) strand.

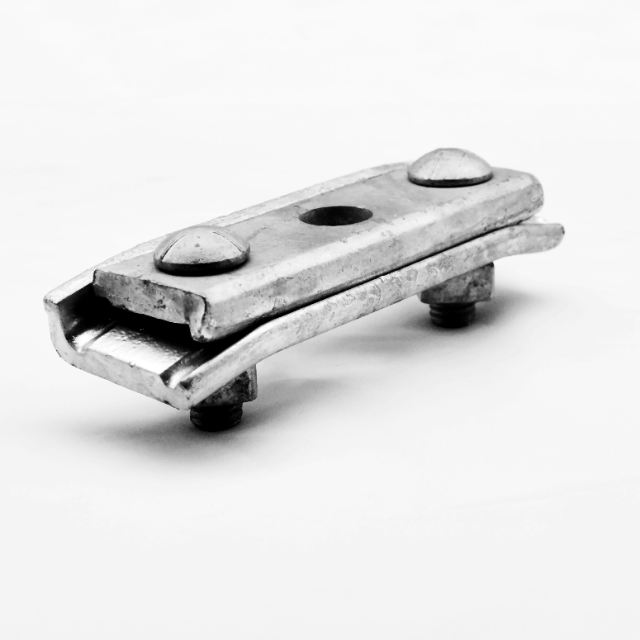

Clamp consists of two mating plates, two 5/8"-11 track bolts with attached square nuts.

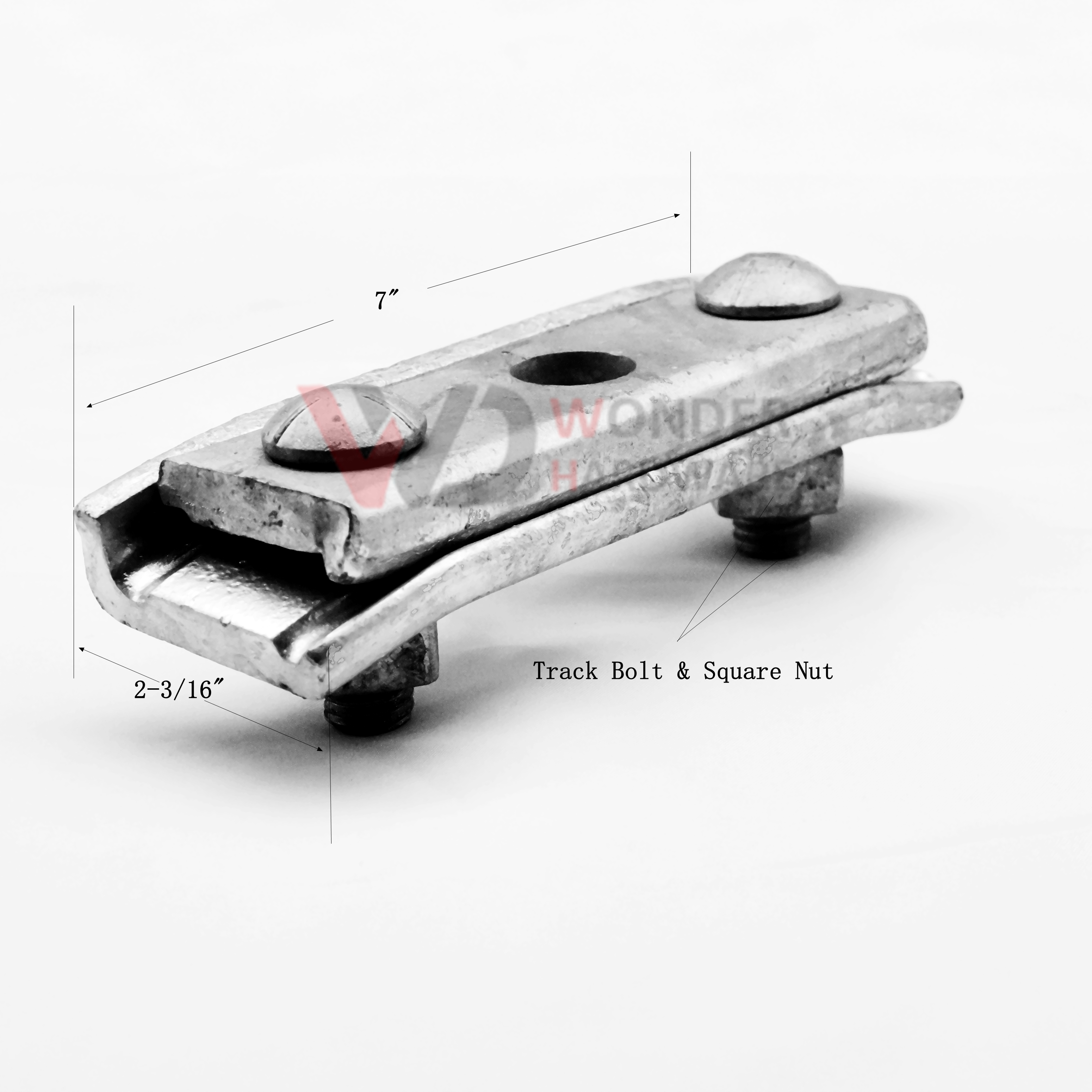

Clamp plates are 2-3/16" wide and 7" long.
One plate is flared at each end to facilitate pulling strand through the clamp and has a substantial projecting lip to retain the strand in the grooves.
The center hole on the Corner Suspension Clamp is for use with a 5/8" or 3/4" diameter bolt.
Hot dip galvanized to meet ASTM A153
Suspension Clamps are used with through bolts, which serve as a clamping member, and are shaped to securely grip messenger wire to the pole. A nut and square washer is used between the clamp and pole to provide proper spacing
Made from rolled, high quality steel, hot dip galvanized per ASTM A153 for maximum corrosion protection
Used for attaching strand to corner poles.
Accepts 1/4" (6.6m) to 7/16" (16m) strand.
Clamp consists of two mating plates, two 5/8"-11 track bolts with attached square nuts.
Clamp plates are 2-3/16" wide and 7" long.
One plate is flared at each end to facilitate pulling strand through the clamp and has a substantial projecting lip to retain the strand in the grooves.
The center hole on the Corner Suspension Clamp is for use with a 5/8" or 3/4" diameter bolt.
Hot dip galvanized to meet ASTM A153
Suspension Clamps are used with through bolts, which serve as a clamping member, and are shaped to securely grip messenger wire to the pole. A nut and square washer is used between the clamp and pole to provide proper spacing
Made from rolled, high quality steel, hot dip galvanized per ASTM A153 for maximum corrosion protection
