SCS-02
WD
| Quantity: | |
|---|---|

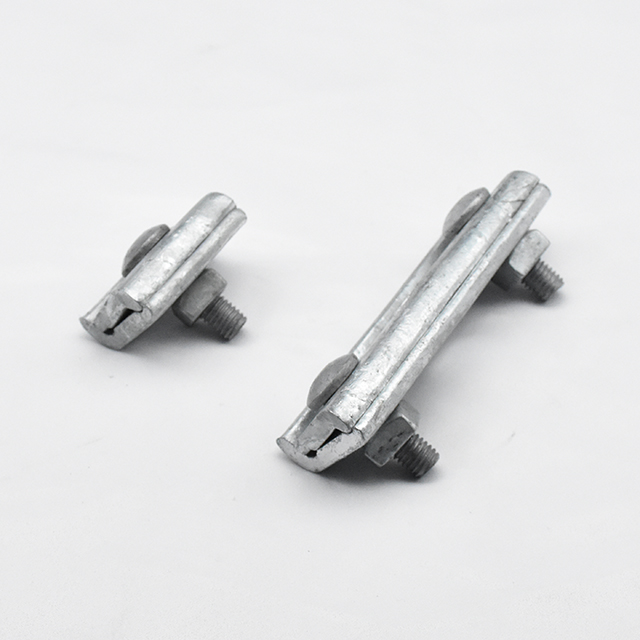

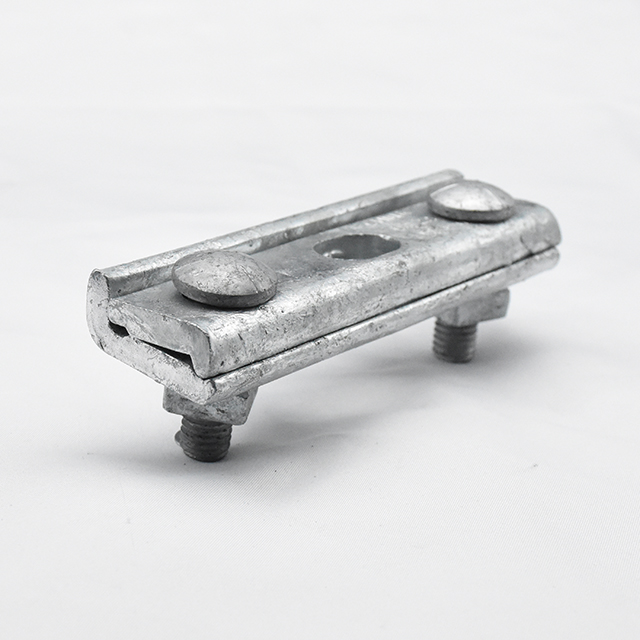

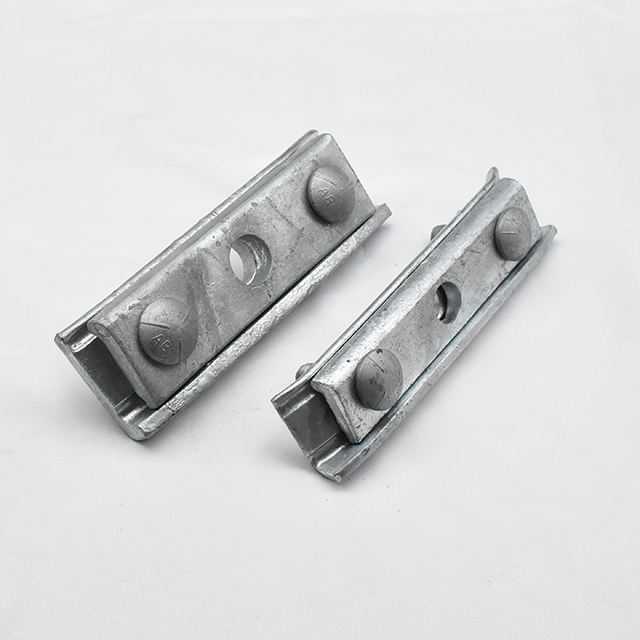

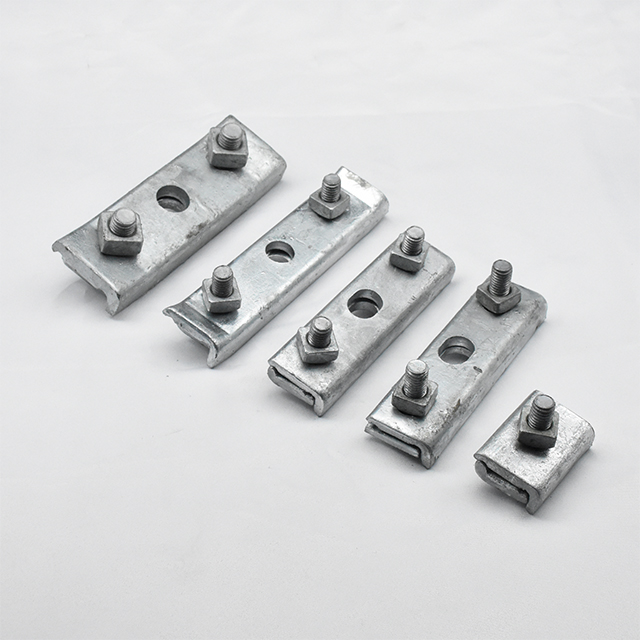

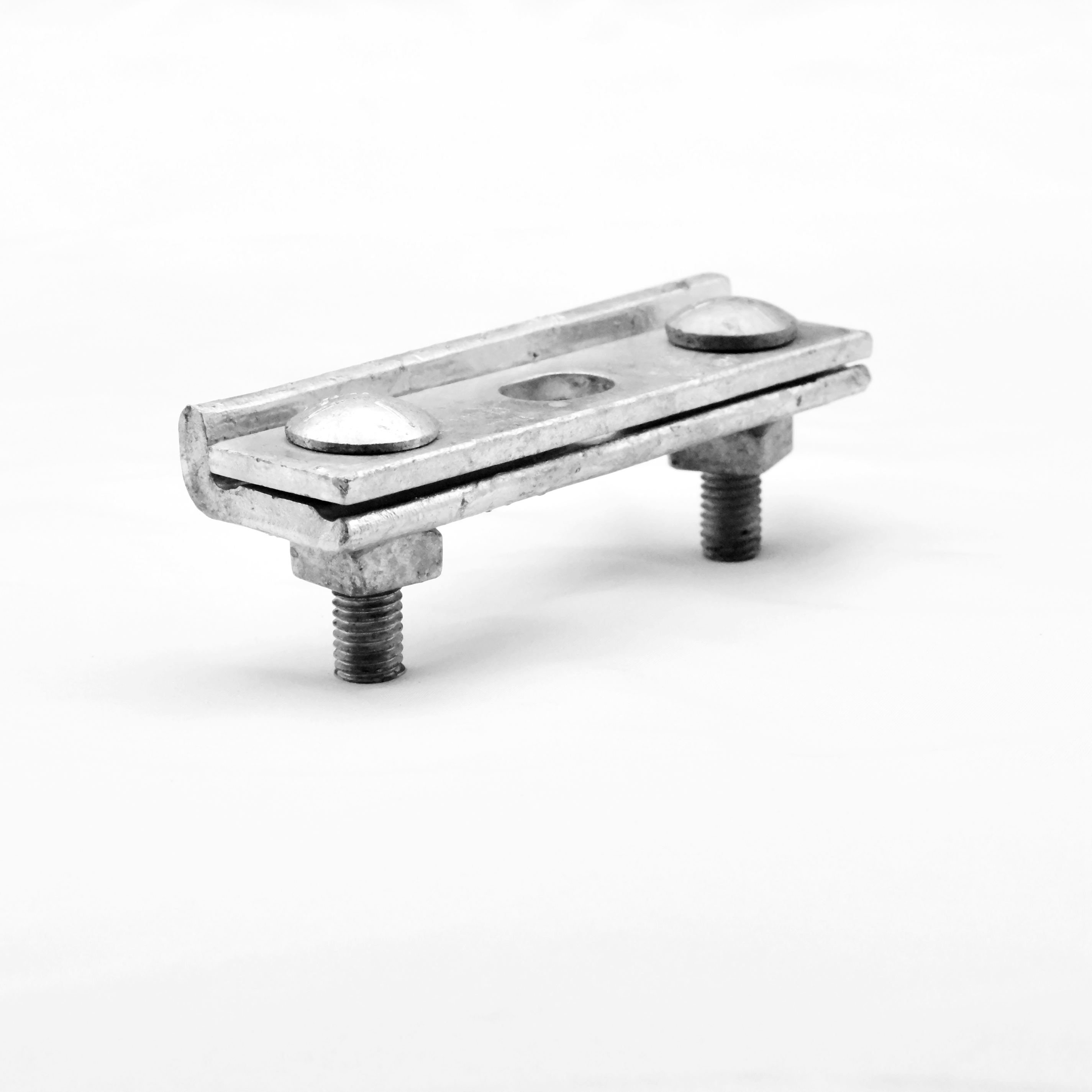

Used to attach strand to straight line poles.
Accepts 1/4" (6.6M) to 7/16" (16M) strand.

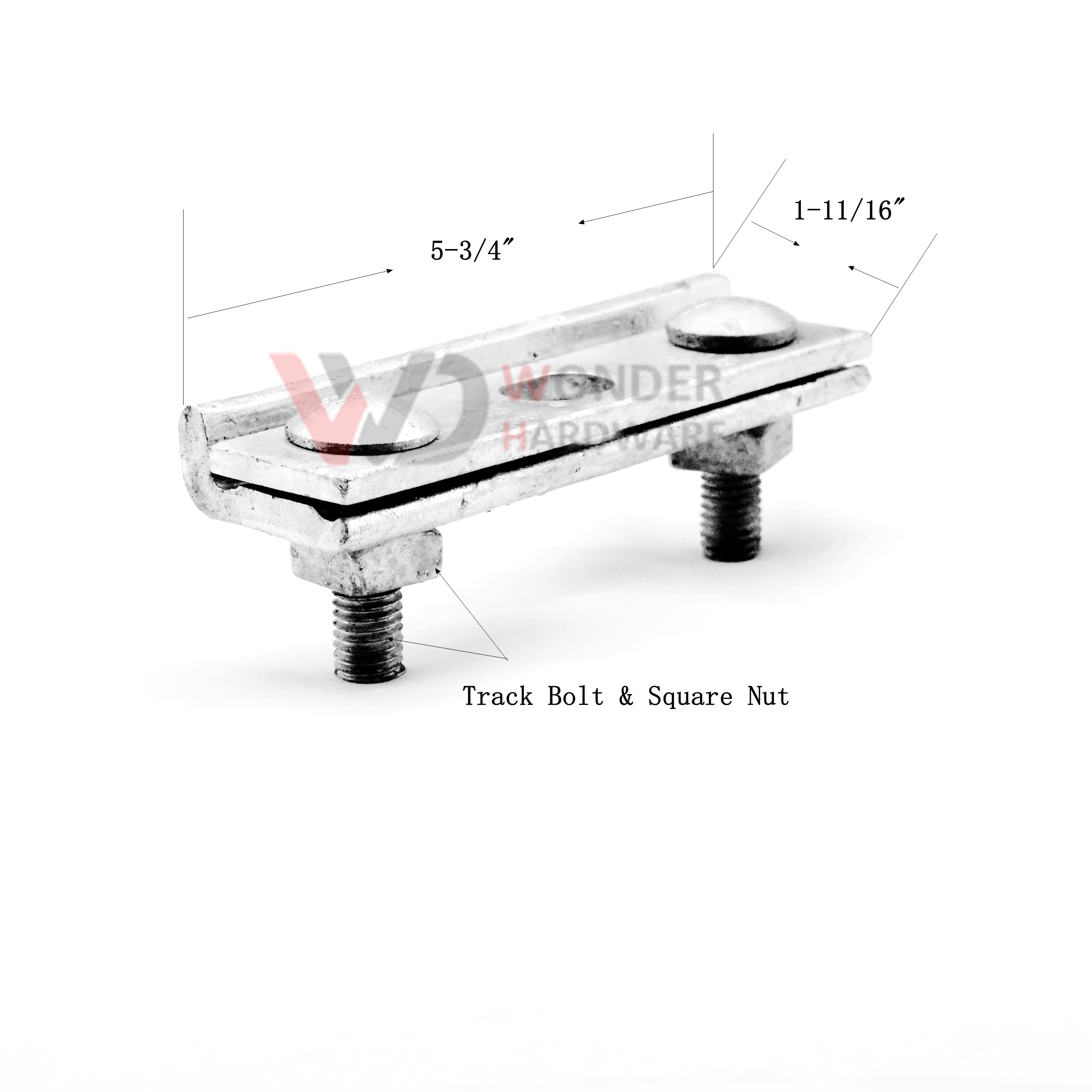

Consists of one hot rolled specialty shaped plate, one stamped flat plate, and two 1/2"-13 track bolts with attached square nuts.
Plates are 1-11/16" wide and 5-3/4" long.
Center hole accepts 5/8" Thru Bolts.
Hot dip galvanized to meet ASTM Specification A153
Used to attach strand to straight line poles.
Accepts 1/4" (6.6M) to 7/16" (16M) strand.
Consists of one hot rolled specialty shaped plate, one stamped flat plate, and two 1/2"-13 track bolts with attached square nuts.
Plates are 1-11/16" wide and 5-3/4" long.
Center hole accepts 5/8" Thru Bolts.
Hot dip galvanized to meet ASTM Specification A153
