Power Line Fittings Square Flat Washers

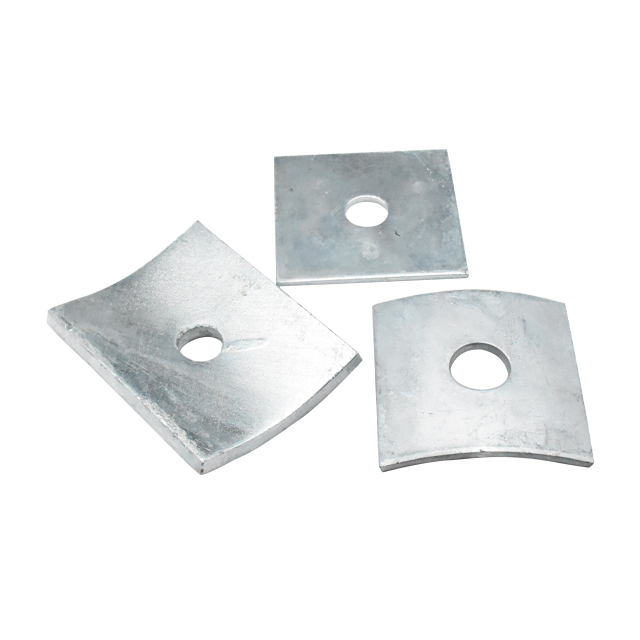

The steel washers include square washers, curved washers, spring washers. The metal washer is used as accessories on the oval eye bolt, pigtail bolt, thimble eye bolt, hex bolt and nut, square bolt, and nut.

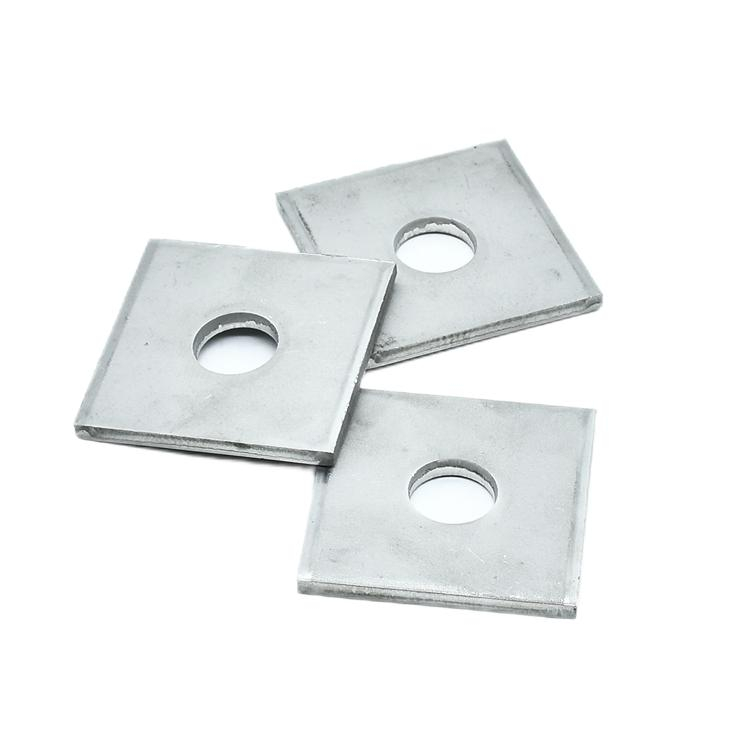

The flat square washer is also called a plate washer, it is used on a square concrete pole line to stop the eye bolt drop off. The curved washer is used on the wooden pole. The curve structure is fit for the wooden pole’s raised surface.
The plate washers have the standard sizes 50*50*3mm, 75*75*6.35mm, 60*60*4.75mm. They also can be manufactured according to the drawings or requirements of the clients.
There is a hole in the middle of the square washer and curved washer. The middle hole diameter depends on the eye bolt diameter. It is for the thread to pass through the hole.
The raw material for the square washer and the curve washer is flat steel. Flat steel cut into the right size. The spring washer is assembled with the bolt and nut. The spring washer makes the fastening more tightly.
All the square washers, curved washers, and spring washers are hot-dip galvanized, the galvanizing will protect them from getting rusty.
