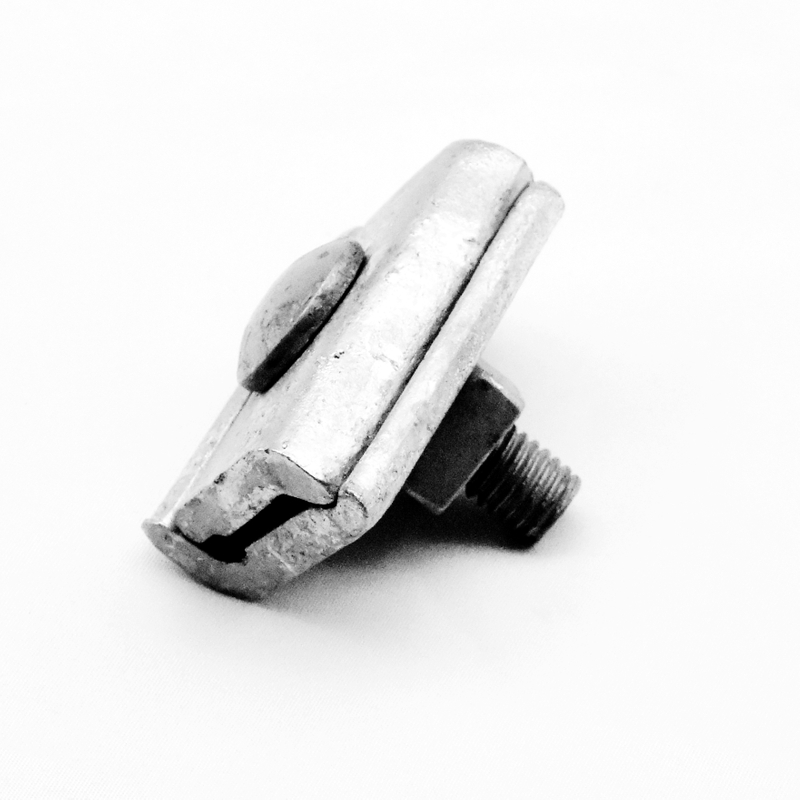

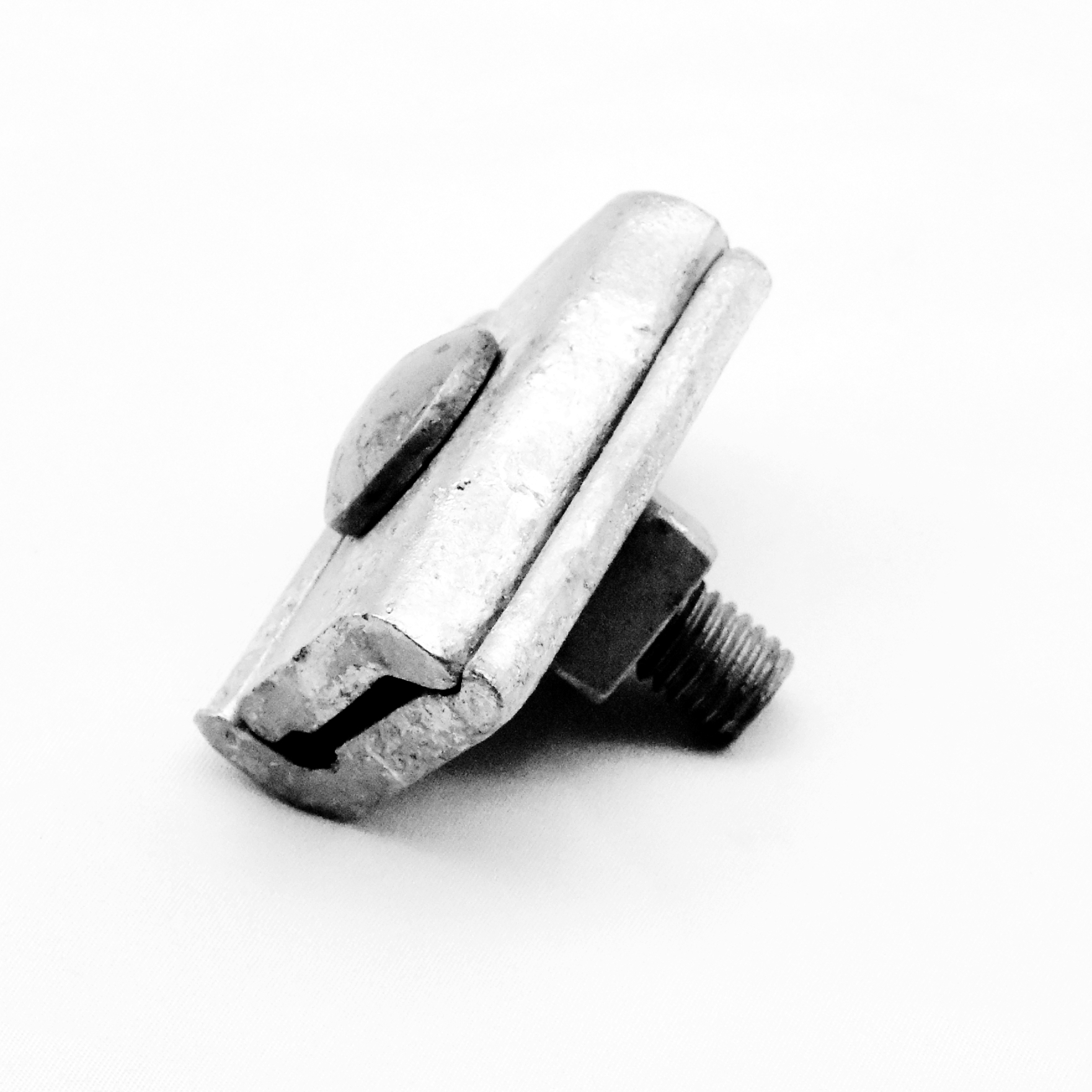

SCS-01
WD
| Quantity: | |
|---|---|

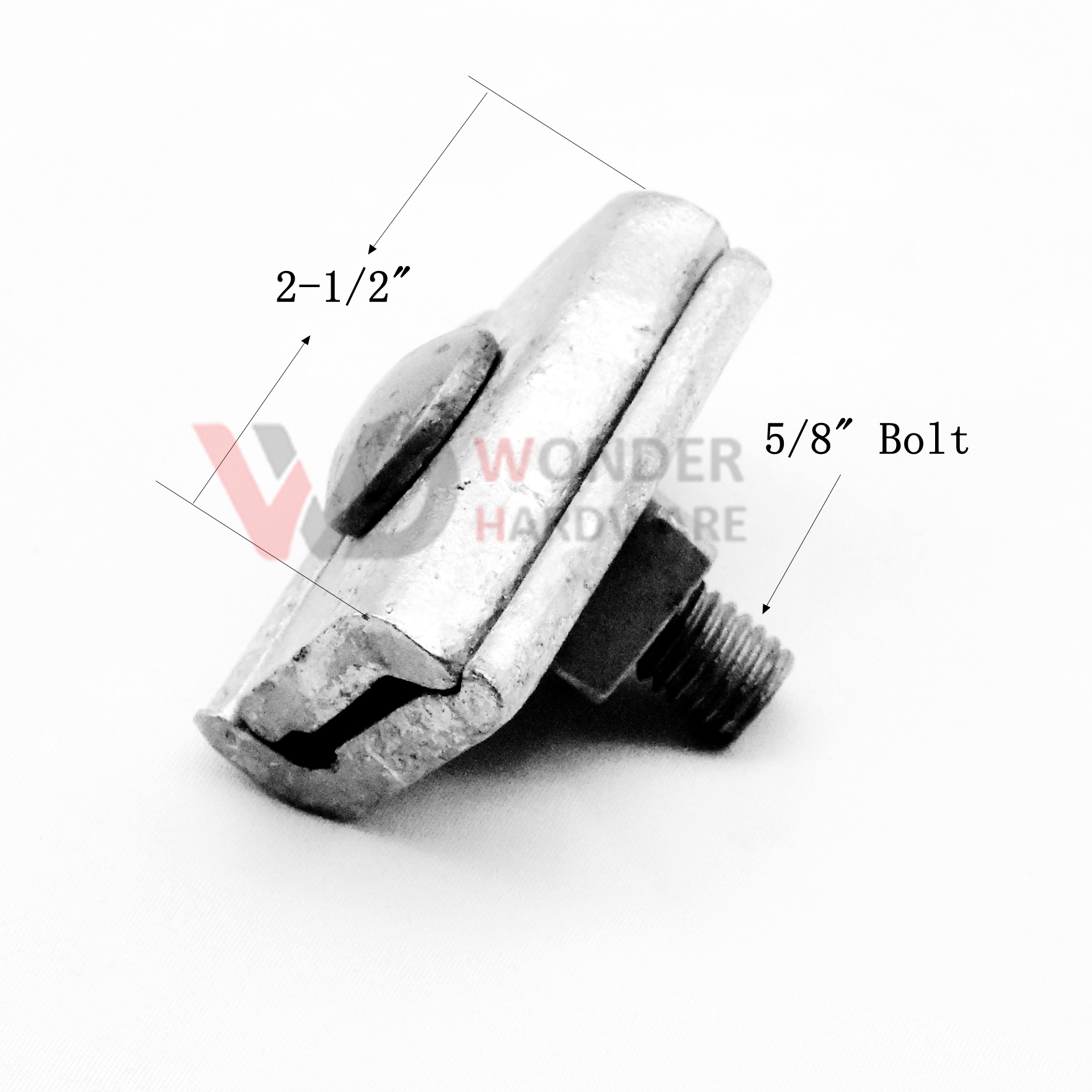

Length: 2-1/2"
Mounting Hole: 11/16"
*Used with through bolts to serve as clamping member
*Securely grips messenger strand to the pole
*A Nut and square washer are used between the clamp
and pole to provide proper spacing
*Consists of clamping members only - used with 5⁄8" through
bolt to tighten the clamp on wire as well as to the pole
*Firmly grips 1⁄4" (6.6M) to 7⁄16" (16M) diameter messenger strand
*Constructed of high quality steel, hot-dip galvanized to meet ASTM Specification A153
Length: 2-1/2"
Mounting Hole: 11/16"
*Used with through bolts to serve as clamping member
*Securely grips messenger strand to the pole
*A Nut and square washer are used between the clamp
and pole to provide proper spacing
*Consists of clamping members only - used with 5⁄8" through
bolt to tighten the clamp on wire as well as to the pole
*Firmly grips 1⁄4" (6.6M) to 7⁄16" (16M) diameter messenger strand
*Constructed of high quality steel, hot-dip galvanized to meet ASTM Specification A153
