SCA-01
WD
| Quantity: | |
|---|---|
Cable Suspension Clamp is a type of Pole Line Hardware that is used for supporting and securing Aerial cables on poles. It is designed to provide a reliable and secure grip on the cable without causing any damage to the insulation or the conductor.
Cable Suspension Clamp made of carbon steel, with hot dip Galvanized finish to meet ASTM A153 specification, which ensure its durability and resistance to corrosion.
There are different types of cable suspension clamps available in the market, including dead-end clamps, suspension clamps, and straight clamps. Dead-end clamps are used to anchor the cable to the pole, while suspension clamps are used to support the cable between two poles. Angle Suspension clamp have Curved ends to prevent damage to the messenger strand.
Used for attaching strand to corner poles.
Accepts 1/4" (6.6m) to 7/16" (16m) strand.

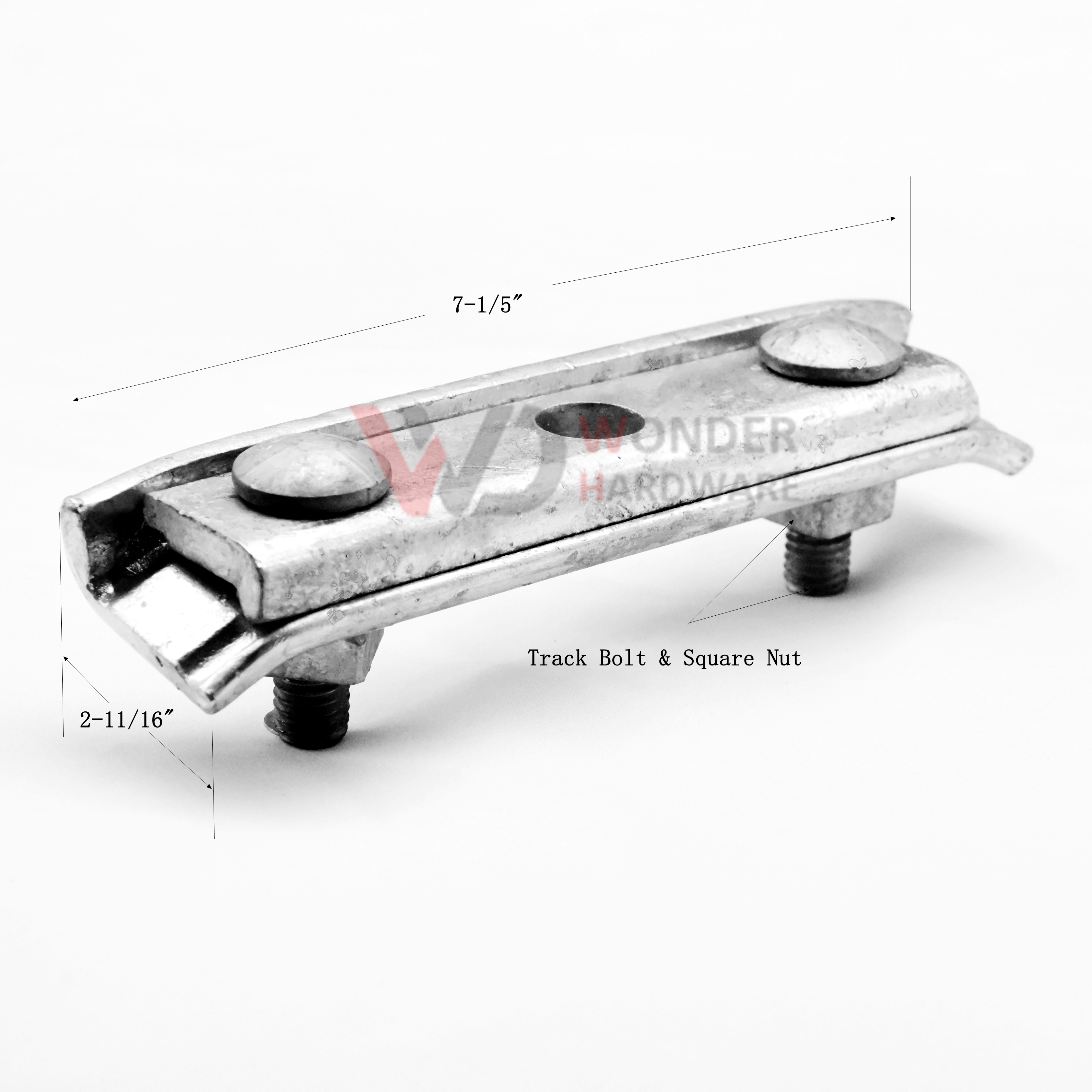

Clamp consists of two mating plates, two 5/8"-11 track bolts with attached square nuts.
Clamp plates are 1-11/16" wide and 7-1/4" long.
One plate is flared at each end to facilitate pulling strand through the clamp and has a substantial projecting lip to retain the strand in the grooves.
The center hole on the Corner Suspension Clamp is for use with a 5/8" diameter bolt.
CATV Corner Suspension Clamps are for use with a 5/8" diameter bolt.
Hot dip galvanized to meet ASTM A153.
